Customized Available, We can custom make the automatic Ceiling Fan Stator Coil Winding Machine According to your Stator Diameter and Height.

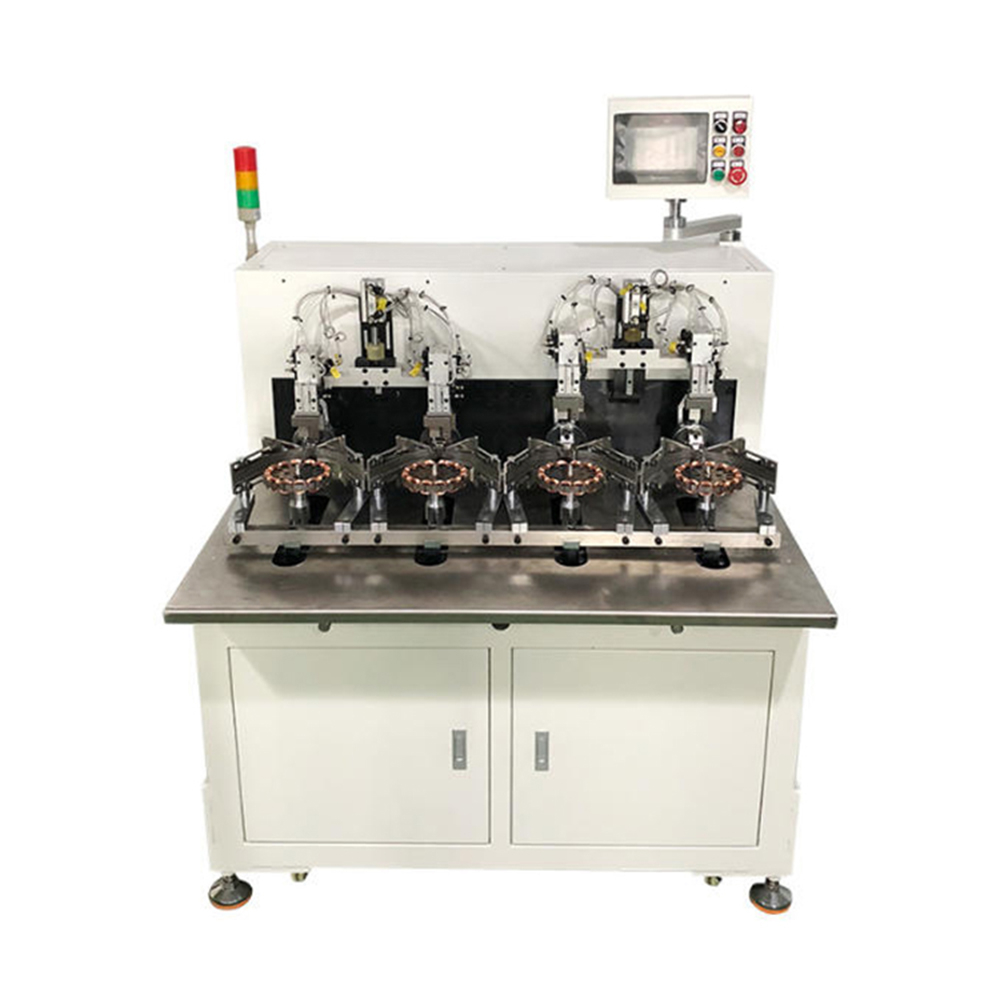

Automatic Ceiling Fan Coil Winding Machine
Model No.: 3104
Automatic Ceilin Fan Coil Winding Machine Technical Specifications:
| Specifications | Parameter |
| Wire Diameter: | Φ01-Φ1.5 mm |
| Fly Fork Diameter: | Φ100-180 mm |
| Winding Head Position: | 4 |
| Stator Height(thickness): | Max 50 mm |
| RPM Speed: | Max 6000 RPM |
| Power Supply: | 220~230V |
| Net Weight: | 350 KG |
| Diamension: | 1150 x 1560 x 1550 mm |
Ceiling Fan Coil Winding Machine Functions:
This External Stator Coil Winding Machine is very suitable for the stator coil winding of the rotary ceiling fan. One machine has two spindles, which can be operated at the same time.
Ceiling Fan Stator Coil Winding Machine Features:
The External Stator Coil Winding Machine is controlled by a microcomputer, It has the following characteristics:
- Simple setting parameters.
- Stable performance and stable quality.
- Automatic winding, multi-wire diameter winding, automatic indexing, automatic slot crossing.
- High production efficiency, labor cost saving.
